Motion Sensor Light Switching
The value of a motion sensor is always helpful in dark corners, difficult-to-reach light switches, and for basic convenience. More than safety, a motion sensor light switch is an extra pair of hands to turn on the light for any application.
Today’s training will include:
Understanding safe installation, proper placement, wiring, adjustment, and testing of a single-pole wall switch occupancy sensor.
1. Safety Start with OFF
Contractor Responsibility

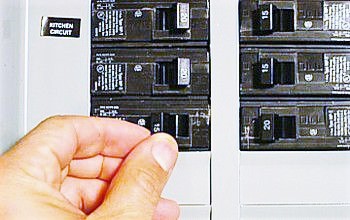

Turn OFF breaker. Verify with tester
Confirm Ground Wire Present (device requires ground). Understand Load Rating Limits: volts, amps, etc.
Safety Note: This device contains electronic components. Improper wiring or overload can damage the unit or create a hazard.
2. Identify Existing Model

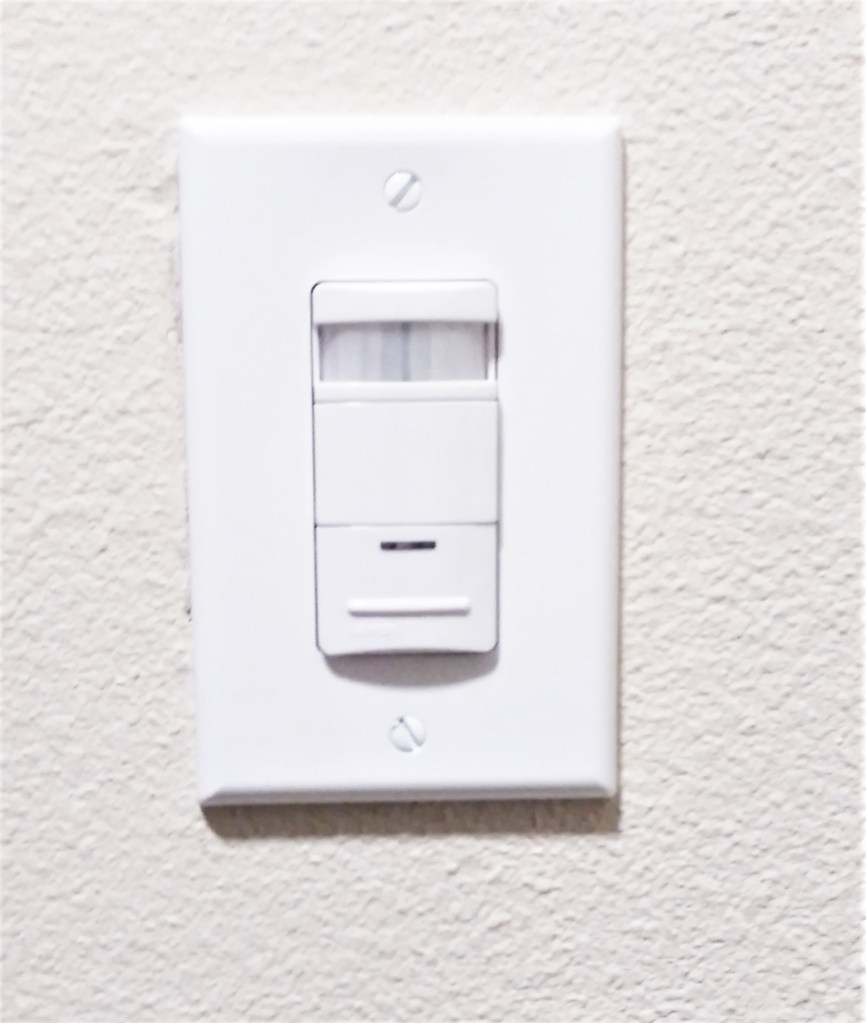

Application Use as Single Pole
Proper Wallbox and Grounding
Indoor Dry and Correct Location
Understand Basic Operation and Coverage
3. Wiring & Installation

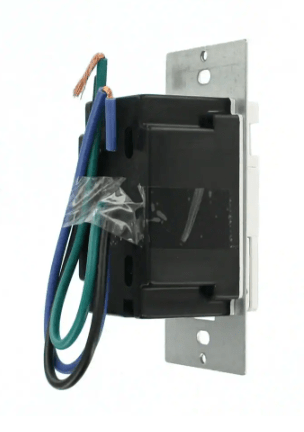

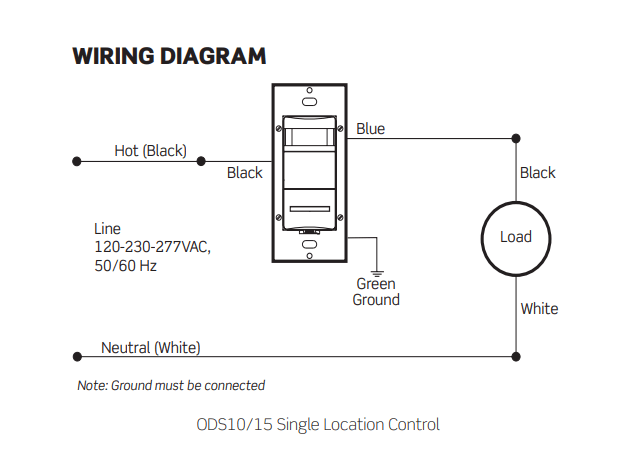

Identify :
Black → LINE (hot);
Blue → LOAD;
Green → GROUND
4. Installation
Safety Check
Proper Connection Line and Load

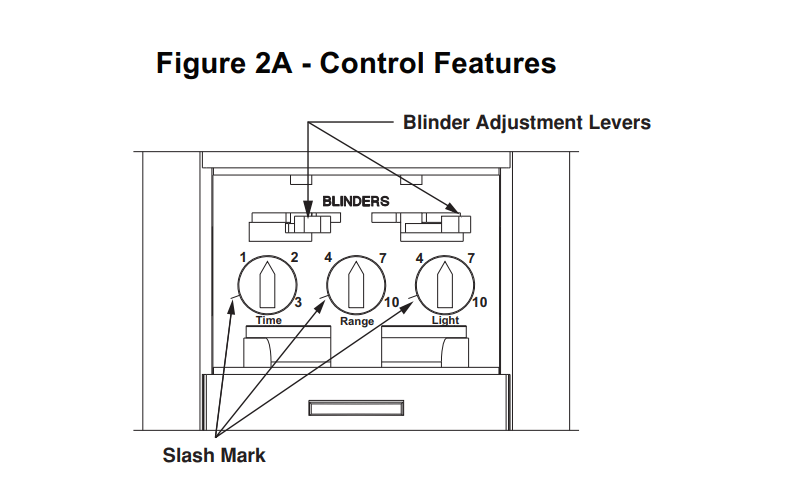

Setting Range and Blinders
Restoring Power, Wait for Power Up
5. Testing
Proper motion test
Range Adjustments
Communicate with the Customer
Summary:
The customer requested for conversion from manual toggle to motion sensor switching. The load was verified and a proper solution was installed, range set and tested after startup wait. Customer is content.
